    • TQLMZA Rotary Flat Sieve
      Writer: Rotary Flat Sieve From: Rotary Flat Sieve
      Size: Big Medium Small Time: 2017-03-17 15:53:47

      TQLMZA Rotary Flat Sieve is the ideal equipment to remove big and small impurities in the grains. It is widely used for cleaning particle material in grain, feeds, food, chemical industry anbrewing .

      Rotary flat sieve features:
      Advanced workmanship, optimized structure, durable and easily operated;
      Excellent clean technic with front of round movement, middle of ellipse movement and end of straight movement;
      Specialized distributors with steady charging flow to uniformly spread materials on the sieve.



      Rotary flat sieve working process:

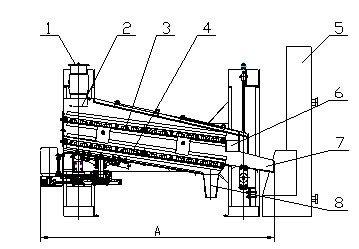

      Materials go into the distribution device (2 )through inlet (1),and then get on the first sifter (3) after being equally distributed by the distribution plate. The sifter does circular motion to fast spread the materials and sift for a long time to increase efficiency.
      Big impurities are on the first sifter (3) and discharged from side outlet (7).The impurities under (3) fall on the second sifter with grains and small impurities on the sifter which moves back and forth in the rear and quickly go into vertical air suction separator through outlet(6).Then the grains and small impurities are separated.micro impurities under the second sifter are discharged through the bottom outlet(8).

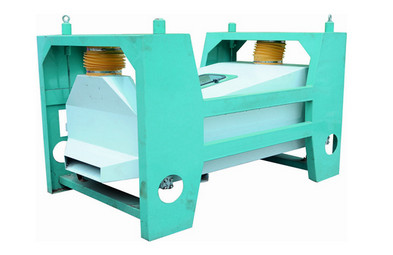

      rotary flat sieve.jpg

      Rotary Flat Sifter consists of the rack,sieve,driving device,stop block and vertical air suction separator.
      The sieve-based machine is integrated with air to sift the materials in diverse motion.It is equipped with proper holes and plates according to the different sizes between grains and impurities.The sieve rotates or moves back and forth to separate materials and then impurities are removed due to different suspending speed from grains.


      Technical parameter:

      Model
      Yield (t/h)
      Sifter Width(cm)
      Sifter Dip Angle(°c)
      Rotation Speed(r/min)
      Power(KW)
      Air Volume
      (m
      ³/min)
      Weight(KG)
      Outline Size
      (mm)
      TQLMZA63
      3-5
      63
      Upper
      sifter
      7
      °

      lower sifter
      300
      0.55
      40
      500
      2300x1040x1320
       TQLMZA80
      4-6
      80
      0.55
      60
      750
      2300x1210x1320
       TQLMZA100
      6-8
      100
      0.55
      80
      800
      2300x1410x1320
      TQLMZA125
      8-12
      125
      0.75
      90
      850
      2300x1660x1320
      TQLMZA150
      10-15
      150
      1.1
      100
      900
      2300x1910x1320



       ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
