Corn Meal Grinder Maize Meal Grinding Machine

  • Corn Meal Grinder Maize Meal Grinding Machine

Short Description:

Corn meal grinder or maize meal grinder is the core equipment for a corn processing enterprise to produce corn meal.
Corn meal grinder mainly consists of rotor, the upper and lower main case, grits milling chamber, kneading toothed plate, sieve plate, motor, rack and so on.


Product Detail

Production Case

Types:

YMSJ60X60 YMSJ56X40 YMSJ40X18 YMSJ32X16


Corn Meal Grinder Maize Meal Grinding Machine



Features:

★This machine is based on advanced technology, widely applied to corn processing field;
★High capacity, stable operation, easy maintenance, high reliability.

YMSJ series of super fine corn meal grinder:

Corn meal, or maize meal, or cornmeal is often used to dust baking surfaces for bread and pizza to prevent sticking and provide texture. Cornmeal is also used as an ingredient in batters for deep-frying, as it offers exceptional flavor and texture.

Corn meal grinder or maize meal grinder is the core equipment for a corn processing enterprise to produce corn meal. It has the advantages of high corn meal yield, uniform corn meal granularity, smooth end products and strong competition in corn end products market.


Corn Meal Grinder Maize Meal Grinding Machine

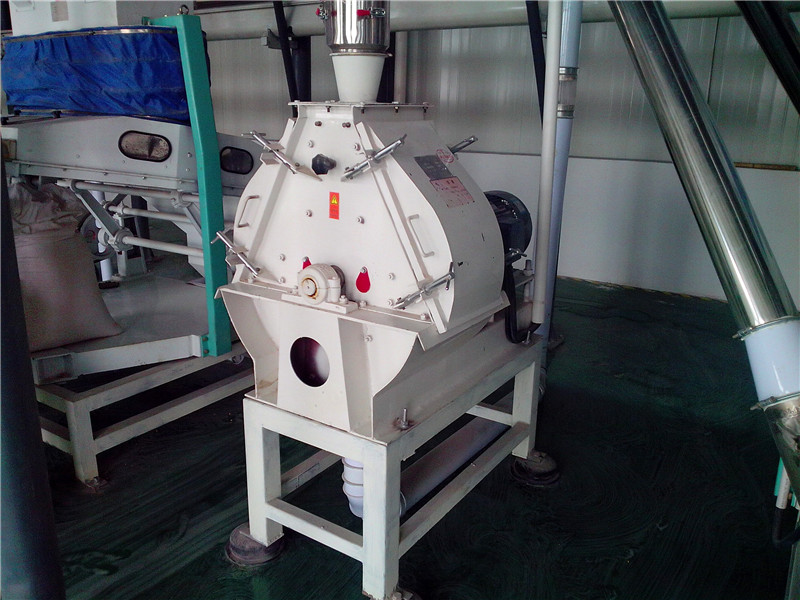

Corn Meal Grinder Application in Corn Processing Plant:

Corn Meal Grinder Maize Meal Grinding Machine

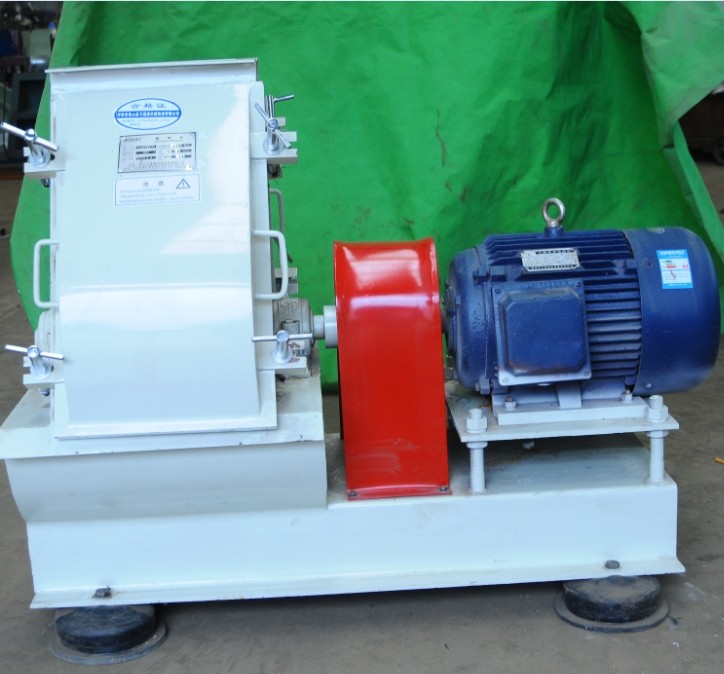

YMSJ series of super fine corn meal grinder mainly consists of rotor, the upper and lower main case, grits milling chamber, kneading toothed plate, sieve plate, motor, rack and so on. When the unprocessed corn kernels enter into the grits milling chamber, under the strike and shearing effect of the professional shear type blade, the cut material kneads and strikes with the sieve plate by the centrifugal drive, which makes the granules surface smooth and makes them become arc shape. The material granules which are smaller than the sieve pore are discharged out of the machine, and granules which are bigger than the sieve pore continue to be cut and stroke until they can pass the sieve pore.


Corn Meal Grinder Maize Meal Grinding Machine finished product

Technical parameter of corn meal grinder:

Model
Power
(kw)
Yield
(kg/h)
Weight
(kg)
Rated Voltage
(V)
Size
(mm)
YMSJ32x16
7.5
1200
200
380
1100x1100x1400
YMSJ40x18
11
1500
320
380
1200x1200x1500
YMSJ56x40
22
2000
500
380
1300x1300x1600
YMSJ60x60
45
5000
750
380
1450×1400×1700
