MTPS25A Maize Peeler Machine, Grain Peeling Machine

  • MTPS25A Maize Peeler Machine, Grain Peeling Machine

Short Description:

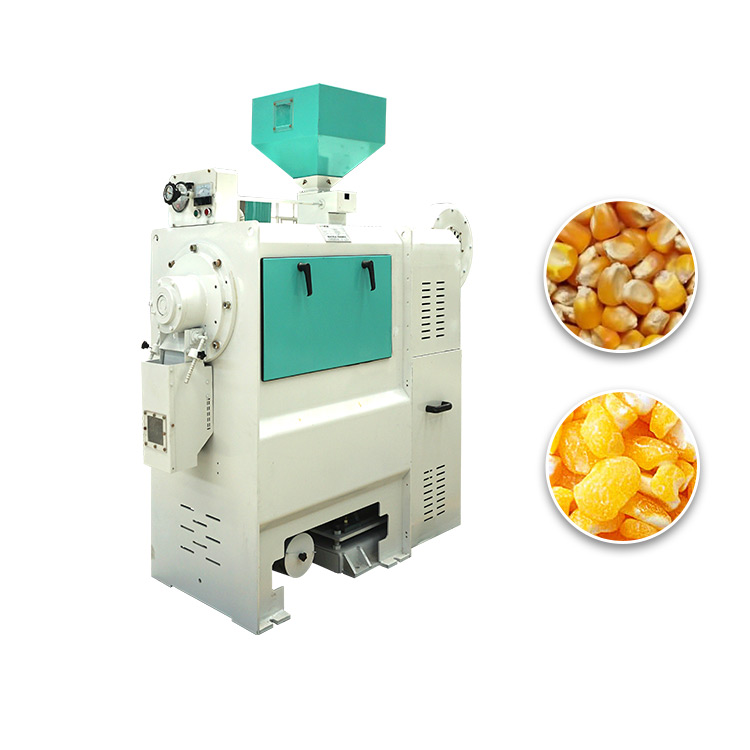

MTPS25A maize peeler machine is newly improved through wide market investigation along with advantages and experiences from home and abroad. MTPS 25A Maize Peeler Machine is mainly used in corn and coarse cereal processing plant for maize peeling and polishing.


Product Detail

Production Case

1. Application:

MTPS25 Series maize peeler machine can be used in grain peeling, including chickpea, mung bean, soya bean, corn, sorghum,etc.



Maize Peeler Machine, Grain Peeling Machine



MTPS25A Maize Peeler Machine is newly improved through wide market investigation along with advantages and experiences from home and abroad. It is mainly used in corn and coarse cereal processing plant forn maize peeling and polishing.



 Maize Peeler Machine, Grain Peeling Machine

2. Function:

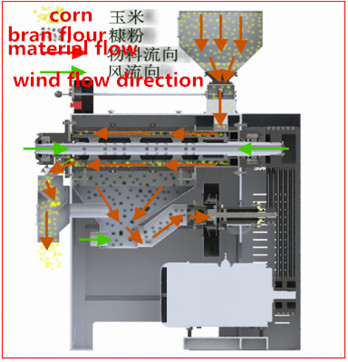

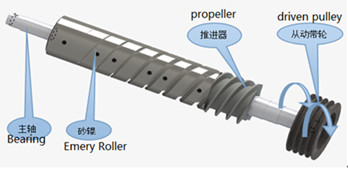

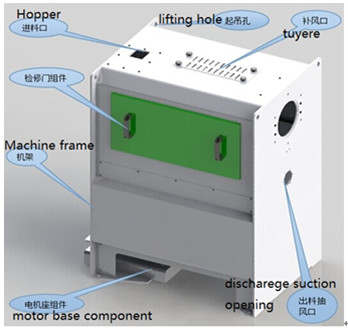

MTPS25A maize peeler machine is mainly composed of fittings of base frame, main shaft, charging regulation device, charging hopper, channel, air blower parts, cyclone parts, protective cover, propelling chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base, sieve plate, bearing base, motor, belt.


Maize Peeler Machine, Grain Peeling Machine


3.Maize peeler machine technical parameter:




Model

Emery Roll Diameter
(mm)

Emery Roll Length
(mm)

Spindle Speed (r/min)

Yield
( t/h)

Power
(kw)

Air Volume
(m³/h)
MTPS-25Y/A
φ240
660
1050
2.5-3.5
30
