NF Duplex Coarse Cereal Flour Grinding Machine

  • NF Duplex Coarse Cereal Flour Grinding Machine

Short Description:

Duplex coarse cereal grinding machine is mainly used in small size of coarse grain flour processing plants.Duplex coarse cereal grinding machine grinds wheat into flour by the grinding roll of the grinder.


Product Detail

Production Case

Duplex coarse cereal grinding machine is mainly used in small size of coarse grain flour processing plants. It has the features of complete function, low noise, no dust, high degree of automation, convenient installation and low production cost. It grinds wheat into flour by the grinding roll of the grinder. Then the flour is winnowed and screened by the circular screen. At last, we package the flour and the bran separately.

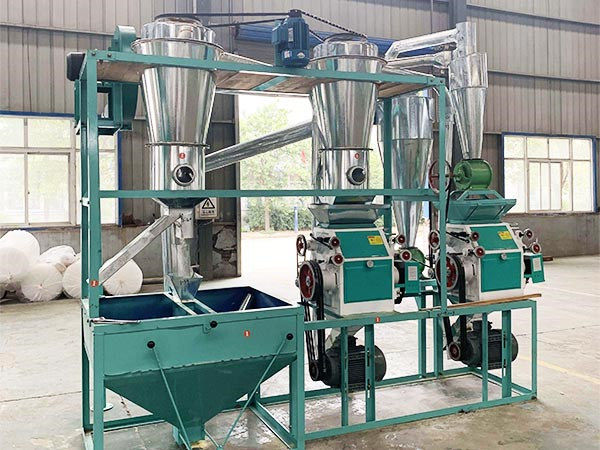

 Duplex Coarse Cereal Flour Grinding Machine

Working principle and features of coarse cereal grinding machine:

The moisture content of the unprocessed grains should be 13.5~14.5%. Start the blower and then start the grinder. When the blower and the grinder are both started, the workbin can be blanking. When the grinding head stock bin has material, then we operate by the order of the combined grinding brake. When we shut down the machine, we should shut down the grinder first, then the blower. Flour milling process should be repeated. We can adjust the roll clearance three to four times successively until it reaches the flour yield. It can adjust the flow by adjusting the clearance between the flow plate and the feeding roll. Rotating the hand wheel screw can adjust the flow.

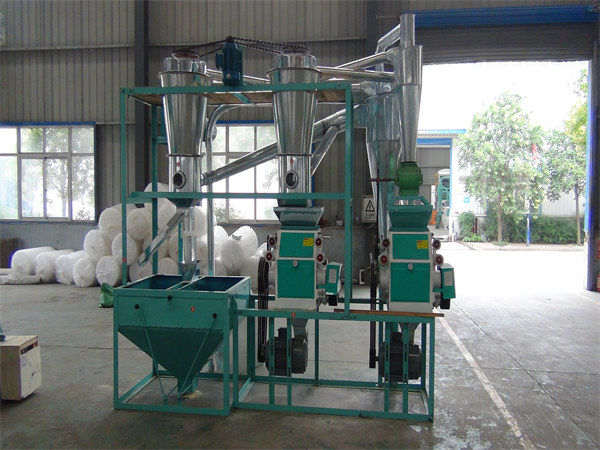

Duplex Coarse Cereal Flour Grinding Machine


High automation degree, reasonable structure, stable running, reliable features, low energy consumption, high efficiency, low production cost, good benefit, low noise, no dust, safety and sanitation, energy conservation and environmental protection, easy installation and convenient maintenance.

 Coarse cereal grinding machine technical parameter:



Model

Yield

Roller Specification(mm)

Fast Roller Speed(r/min)

Power

Weight

Outline Size

(kg/h)

(kw)

(kg)

(mm)

NF-2235

400-500

Ф220×350

650

15+3

1100

4000x1300x4200

NF-2240

500-550

Ф220×400

650

22+3

1250

4000x1500x4200

NF-2250

600-650

Ф220×500

650

30+3

1400

4000x1800x4200
