    • YTZF 28-40 Posho Mill with Diesel Engine
      Writer: Posho mill for grinding maize From: Posho mill for grinding maize
      Size: Big Medium Small Time: 2018-09-20 15:39:45

      YTZF 28-40 Posho Mill with Diesel Engine

      Posho mill is our newly developed grain processing equipment. Multi-function Mealie Meal Making Machine can make high quality super white maize meal,breakfast meal,roller meal,very good for making Fufu,Ugali,Unga etc Staple Africa food.

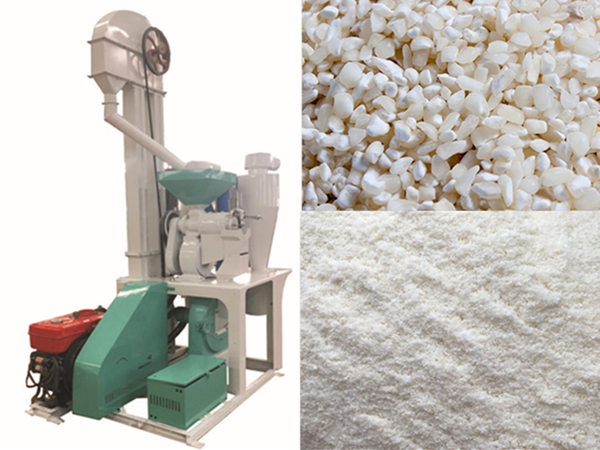

      Combination of maize huller + posho mill with diesel engine

      This is a China Win Tone Machinery fabricated posho mill. It is combined together with a huller machine which removes the outer covering of the maize seed (testa) so as to mill flour. It is either powered by a diesel engine of 32hp or an electric motor of 22kw high speed.

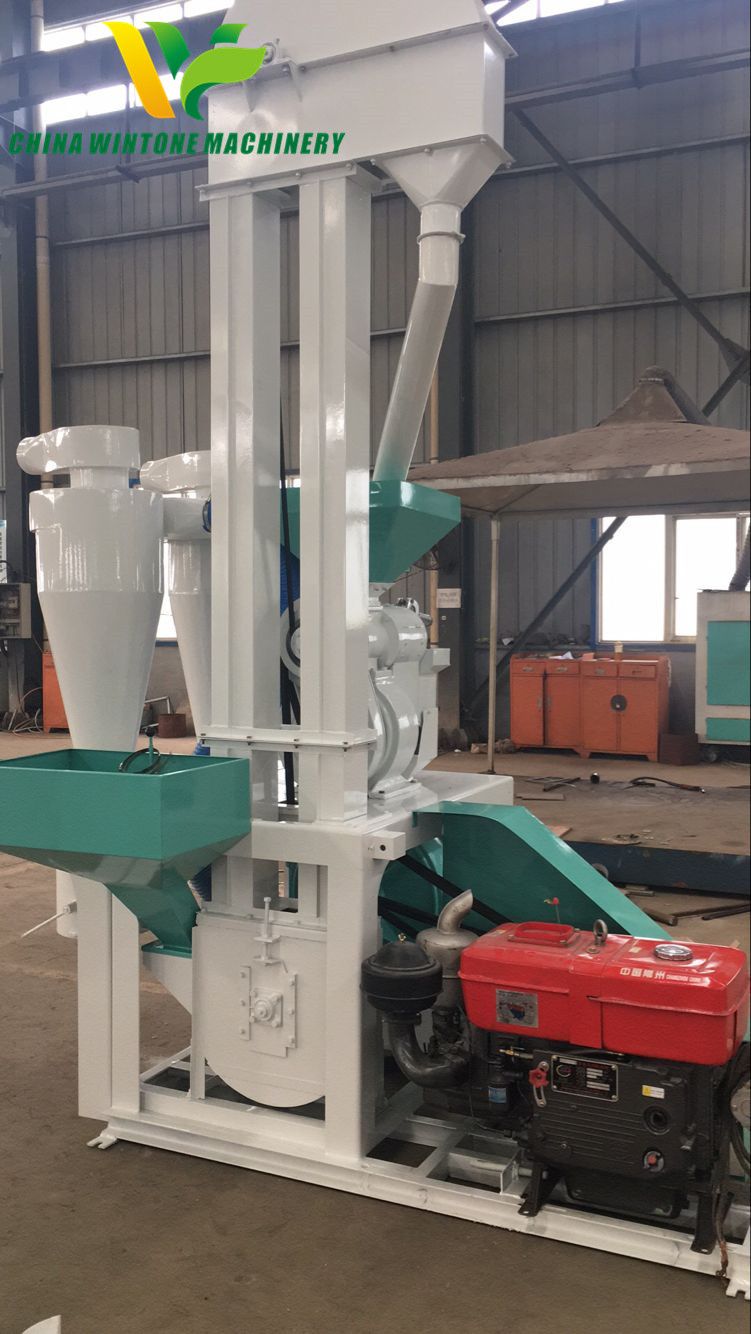

      posho mill

      Working Principle:

      Touch screen control/Schneider electric components/high quality switch/standard cable connection. This design include the truck scale,maize store silo,maize milling machine workshop,the maize meal store,office

      1. The clean part:

      To clean out the middle and small impurity from wheat. e.g., dust, stone, magnetic material, wheat was bitten by insect and so on. Includes beating, screening, destoner, magnetic separator and dampening.this section is make the wheat to prepare for milling part and to protect the machinery as well.

      2. The flour milling part:

      Include different number of mill and sifter to mill the wheat and separate the flour and bran

      (1) Mill: mill the wheat to break the integrity by the roller moving.

      (2) Sifter: to separate the flour and bran, also separate large size and small size to ensure flour quality

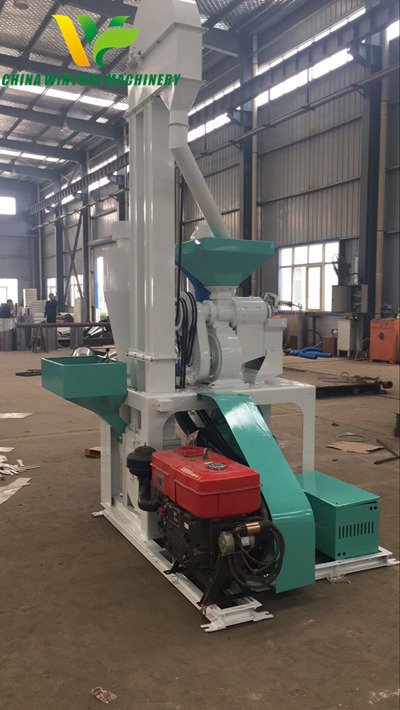

      posho mill

      Main Features:

      1) Simple structure in linear type ,easy in installation and maintation.

      2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

      3) High pressure double crank to control the die opening and closing.

      4) Running in a high automatization and intellectualization,no pollution.

      5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.

      6) Multi function, can be used for corn, millet, beans and other grians milling.

      7) Easy operation and maintenance.




      Model
      原粮
      Unprocessed Grain
      产量
      Yield
      (kg/h)
      风量
      Air Volume
      (m³/h)
      重量
      Weight(kg)
      动力
      Power
      (kW)
      皮杂率
      Bran Rate(%)
      粉粒细度
      Powder Fineness(mesh)
      外形尺寸
      Boundary Dimension
      (mm)
      NF28-40
      玉米
      corn
      600-850
      2200-2600
      800
      22
      19-30
      30-60


      2000×1200×3100
      水稻
      paddy
      350-450
      40-60
      豆类
      bean
      250-350
      40-60
