NF Single Corn Flour Grinding Machine

  • NF Single Corn Flour Grinding Machine

Short Description:

NF single corn flour grinding machine is mainly used in small size of coarse grain flour milling plants. Corn flour grinding machine grinds wheat into flour by the grinding roll of the grinder.


Product Detail

Production Case

 NF single corn flour grinding machine is mainly used in small size of coarse grain flour milling plants. It has the features of complete function, low noise, no dust, high degree of automation, convenient installation and low production cost. It grinds wheat into flour by the grinding roll of the grinder. Then the flour is winnowed and screened by the circular screen. At last, we package the flour and the bran separately.

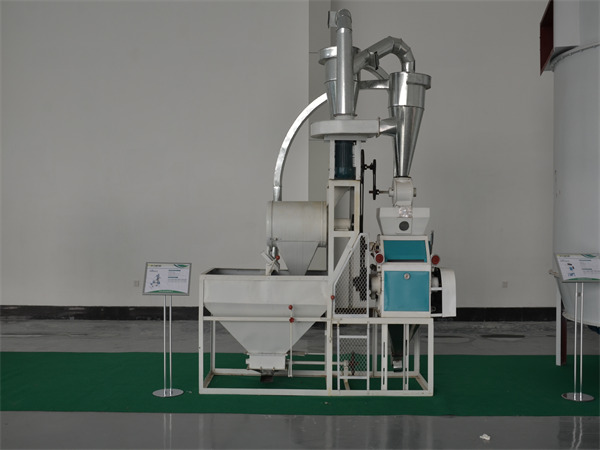

Corn Flour Grinding Machine


Working principle and features of corn flour ginding machine:

The moisture content of the unprocessed grains should be 13.5~14.5%. Start the blower and then start the grinder. When the blower and the grinder are both started, the workbin can be blanking. When the grinding head stock bin has material, then we operate by the order of the combined grinding brake. When we shut down the machine, we should shut down the grinder first, then the blower. Flour milling process should be repeated. We can adjust the roll clearance three to four times successively until it reaches the flour yield. It can adjust the flow by adjusting the clearance between the flow plate and the feeding roll.

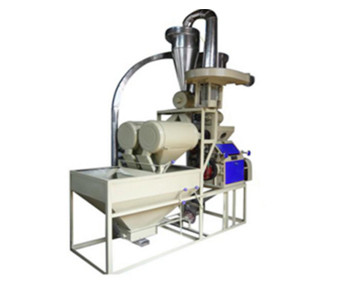

Corn Flour Grinding Machine



Rotating the hand wheel screw can adjust the flow.High automation degree, reasonable structure, stable running, reliable features, low energy consumption, high efficiency, low production cost, good benefit, low noise, no dust, safety and sanitation, energy conservation and environmental protection, easy installation and convenient maintenance.

Wintone's NF Single Corn Four Grinding Mchine Techincal Parameter:

Model
Yield
Roll Specificationmm
Fast Roller Speedr/min
Power
Weight
Outline Size
KG/H
(kw)
KG
(mm)
NF-2235
300-350
Ф222×350
650
7.5+3
300
2200x800x4000
NF-2240
400-500
Ф222×400
650
11+3
700
2200x900x4000
NF-2250
500-550
Ф222×500
650
15+3
800
2200x1000x4000
