MTPS-R Series Sand Roller Maize Peeling Machine

  • MTPS-R Series Sand Roller Maize Peeling Machine

Short Description:

2020 New Designed Sand Roller Maize Peeling Machine(MTPS-18R/25R/30R)Brief Introduction:  The new designed MTPS R series corn sand roller peeling machine is


Product Detail

Production Case

Brief Introduction:

       The new designed MTPS R series corn sand roller peeling machine is the core product of WinTone Machinery in 2020. This series of maize peeling machine is the third generation of corn peeling equipment optimized and improved based on the prototype of FTP-600 peeling machine.

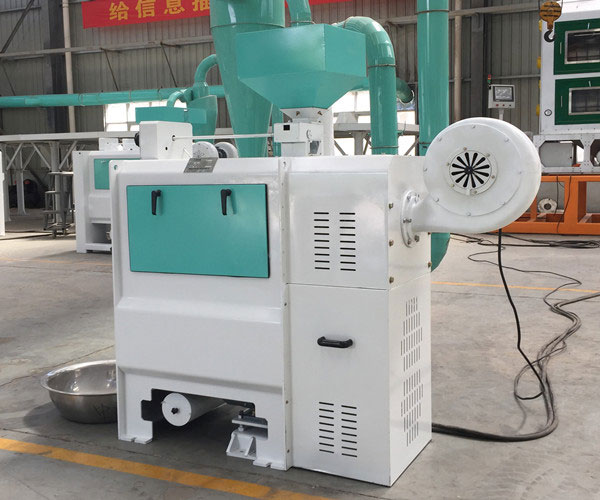

Sand Roller Maize Peeling Machine

Application:

  Used in corn processing enterprises and feed processing enterprises. In response to the feed enterprise's demand for large-scale corn peeling machines, a double body 12 t/h sand roller corn peeling machine was specially designed.

Features:

  1. New upgrade

  The R series is the optimized and improved third-generation corn peeling machine, which is composed of high-strength sand rollers and wear-resistant screens, equiped with an air spray system inner to improve the separation efficiency of bran and impurities;

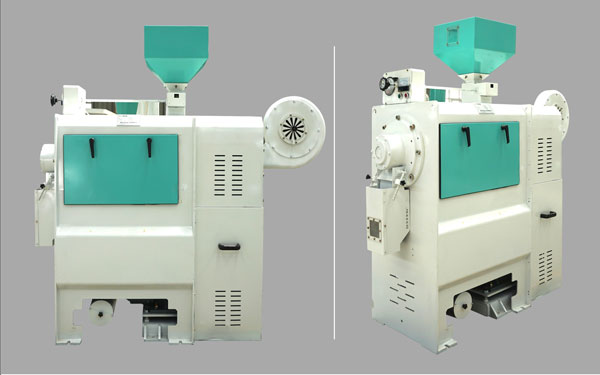

Sand Roller Maize Peeling Machine



  2. Large output

  Multiple models can cover the processing requirements of 1-6 tons / hour by one machine, specially 12 tons / hour corn peeling machine with double body;

  3. Easy to operate

  Adjustable ballast size as customers' required with high peeling rate.

  4. Low energy consumption

  One or two motors can save energy and occupy a small area;


Sand Roller Maize Peeling Machine finished product

Technical Parameter:

 Model
 Capacity(t/h)
 Power(kw)
 Voltage(v)
 Suction volume(m³)
 Wind pressure(pa)
 Peeling rate(%)
Weight(kg)
Dimension(mm)
 MTPS18R
2-2.5
18.5—22+2.2
380
800-1200
3660-3720
95
760
1935*735*1892
MTPS25R
3-4
22—30+2.2
380
1000-1500
3660-3720
95
805
2013*690*2222
MTPS30R
4-6
37--45+2.2
380
2600-3400
4500-5500
95
1050
2191*950*2222


More Details:

Sand Roller Maize Peeling Machine
