      How to operate corn miller?
      The moisture content of the unprocessed grains should be 13.5~14.5%. Start the blower and then start the grinder. When the blower and the grinder are both started, the workbin can be blanking. When the grinding head stock bin has material, then we operate by the order of the combined grinding brake. When we shut down the machine, we should shut down the grinder first, then the blower. Flour milling process should be repeated. We can adjust the roll clearance three to four times successively until it reaches the flour yield. It can adjust the flow by adjusting the clearance between the flow plate and the feeding roll. Rotating the hand wheel screw can adjust the flow.





      Corn miller features and function:



      Corn miller has the features of simple structure, easy installation and maintenance, small volume, low noise, low energy consumption, environmental protection, low investment, high automation degree and so on. It can produce fine maize meal without bonding. Maize miller grinds maize into fine powder by the grinding roll. After screening and winnowing, the end products (maize flour and maize bran) can be packaged separately. Maize miller can also grind wheat and beans.

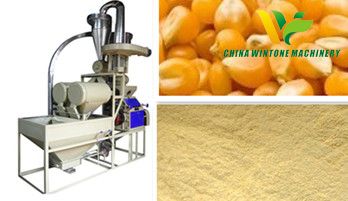

      maize miller corn miller maize miller machine.jpg




      Maize miller technical parameter:

      Model
      Yield
      (KG/H)
      Roll Specification(mm)
      Fast Roller Speed(r/min)
      Power
      (kw)
      Weight
      (KG)
      Outline Size
      (mm)
      NF-2235
      300-350
      Ф222×350
      650
      7.5+3
      300
      2200x800x4000
      NF-2240
      400-500
      Ф222×400
      650
      11+3
      700
      2200x900x4000
      NF-2250
      500-550
      Ф222×500
      650
      15+3
      800
      2200x1000x4000



      ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
