      Corn Grits and Flour Making Machine Set

      Corn Grits and Flour Making Machine Set adopts multi-module and split type of streamlined design.

      VIDEO

      Corn Grits and Flour Making Machine Set is easily operated and maintained.  It contains cleaning and stone removing section, peeling and polishing section, grits and flour milling section, end products classifying section and winnowing section. It is suitable for various kinds of grains processing, such as corn processing, soybean processing, mung bean processing, wheat processing, millet processing and sorghum processing.

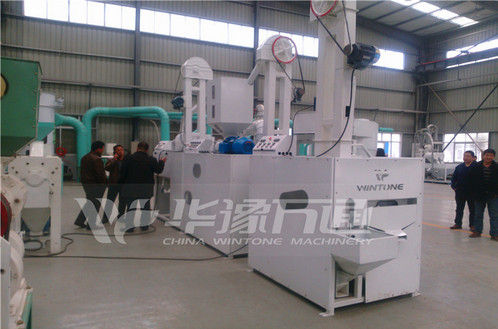

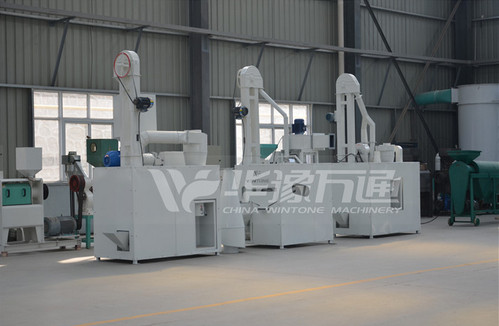

      TSFZ-15T Multifunctional Corn Grits and Corn Flour Machine Set Technological Process:
      The unprocessed grains are put into the feeding hopper of the single mechanical elevator and is conveyed to TQS-50 cleaning and stone removing combination machine by TTG19/8D single mechanical elevator. Then it can remove the big and small impurities and stones with similar gravity with grains from the raw material. The net grains flow into the mechanical elevator hopper of NFZ-280G peeling and polishing combination machine. Then it is conveyed to NFZ-280G peeling and polishing combination machine by the combination elevator for peeling and polishing. After peeling and polishing, the grain kernels flow into the elevator hopper of YMSF-404 four-size corn grits machine. And then they are conveyed to YMSF-404 four-size corn grits machine by the conveyor for milling. After milling, the corn grits and flour is screened by the cylinder classifying screen and the big, medium and small grits and flour from the screen can be packaged. The exhaust fan aspirates the corn bran into the centrifugal spiral dust remover for corn bran collection.


       Corn kernel:




      Corn grits and flour:



      Corn coarse flour:



      Corn Grits and Corn Flour Making Machine Set Technical Parameter:

      Technical Index
      Corollary Equipment Name and Model
      Power(kw)
      Yield(t/h)
      Single
      Total
      Single
      Total
      TG19/8D Single Elevator
      0.37*3
      33.26
      1-1.5

      TQS-50 Cleaning and Destoner Machine Set
      3
      1.2-1.5

      NFZ-280G Peeling and Polishing Machine Set
      5.5*3
      0.6-0.8
      0.6-0.8
      YMSF-404 Four-size Grits Machine
      7.5
      0.6-0.8

      Exhaust Fan
      2.2+2.2+0.75



      Combination Machine Main Technical Index
      No.
      Item
      Technical Parameter
      Remarks
      1
      Yield(t/24h)
      15

      2
      Power Input(v/HZ)
      380/50

      3
      Total Power(kw)
      33.26

      4
      Total Weight(t)
      3--4

      5
      Size(l*w*h)(m)
      5.2*1.4*2.8





      ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
