YTZSF28-5B Corn Peeling & Milling Machine

  • YTZSF28-5B Corn Peeling & Milling Machine

Short Description:

YTZSF28-5B Corn Peeling & Milling Machine is used in corn peeling, grits and flour milling, wheat hulling and flour milling, millet polishing.


Product Detail

Production Case

YTZSF28-5B Corn Peeling & Milling Machine Introduction:

YTZSF28-5B Corn Peeling and Milling Machine is suitable for small size of food processing factories in corn hulling, grits and flour making, wheat hulling and millet polishing. It is the core equipment for a corn processing enterprise to produce corn grits and flour.

This Corn Peeling & Milling Machine  is our company's latest designed qualitative machine  with extensive collection of users, and als replacement corn peeling milling machine on the market  currently.


Corn Peeling & Milling Machine

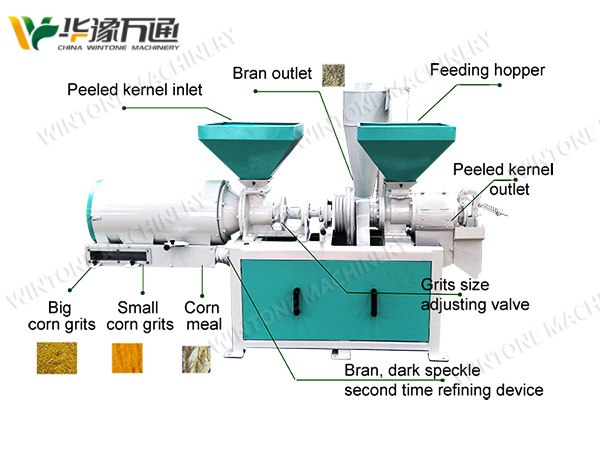

Working Principle of Corn Peeling and Milling Machine:

YTZSF28-5B Corn Peeling and Milling Machine consists of corn peeling, grits and flour milling, wheat hulling and millet polishing. The clean raw grain is conveyed to the feeding inlet for peeling, degermination and black impurities removing and can be processed into corn kernels once. After smashing and mixture grading, the machine can produce three end products: medium grits, small grits and corn flour. Inside of the machine has highly efficient air draft chamber for collecting the corn skin from peeling process and further cleaning micro powder and micro impurities in the corn grits.

Spare parts:

grinding core, roller, peeling blade, peeling sieve, triangular belt, hairbrush.



Corn Peeling & Milling Machine

Corn peeling and milling machine features:

1. This machine set adopts dry peeling technology. The products don’t touch water. Compared with wet peeling technology, this processing method is more sanitary.

2. This kind of machine is internally installed efficient winnowing and dust removal fan, which;can remove and collect corn skin and the impurities and dust from grits processing, then eliminate and collect these skins and impurities by cyclone.

3. Low energy consumption, wide usage

4. The machine is unique and innovative, multi-functional, energy saving, low broken rate, high capacity, high yield.



 Corn Peeling & Milling Machine

End Products :

 Corn Peeling & Milling Machine finished product

Technical Parameter:

Model

Capacity

Power

Voltage

Spindle Speed(r/min)
Weight
Size
(KG/H)
KW
(V)
(KG)
(mm)

YTZSF 28-5B

peeling

grits

flour

wheat peeling

11

380

1000-1200

350

2200x900x1200

500

1000

300

400
