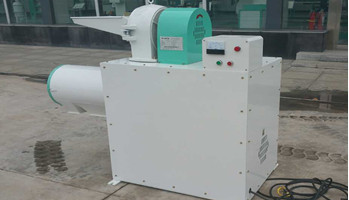

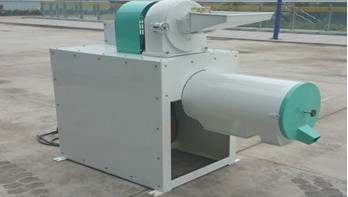

DNM-3C Maize Grits and Flour Grinding Machine
DNM-3C maize grits and flour milling machine is used for individual grain processing workshop. The maize should be cleaned or hulled before using the machine. It can produce large quantity of flour with a few grits and husk, and can improve the flour taste.
Maize Grits and Flour Milling Machine is easily operated and maintained. It has the following advantages:
① According to the requirements of African clients, the machine is added with round grader to increase flour taste by sifting out bran and husks.
② One worker can operate the simple machine.
③ Convenient maintenance.
④ Wear-resistant material.
⑤ Small structure, easy to be transported.
⑥ Reasonable design with minimum processing capacity of 3kg.
⑦ Few internally installed pipes to avoid mould due to the hot and humid weather.
⑧ High yield and low power
Maize Grits and Flour Grinding Machine Technical Parameter：
|
No.
|
Subject
|
Parameter
|
|
1
|
Yield（kg/h）
|
200-500
|
|
2
|
Rated voltage（V）
|
380
|
|
3
|
Power（kw）
|
7.5
|
|
4
|
Rotary milling speed（r/min）
|
5000
|
|
5
|
Grading sieve speed（r/min）
|
576
|
|
6
|
Weight（kg）
|
160
|
|
7
|

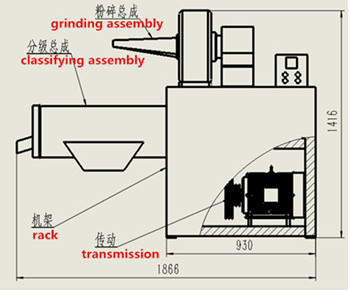

Dimension（length× width× height）mm
|
1860×650×1410
|
