YTZSF28-30 Corn Peeling, Grits and Flour Machine Set

  • YTZSF28-30 Corn Peeling, Grits and Flour Machine Set

Short Description:

Corn peeling, grits and flour machine is used in corn peeling,grits and flour milling, wheat peeling and flour milling, paddy peeling and sorghum peeling and flour milling.

YTZSF28-30 corn peeling, grits and flour machine set mainly has two functions: corn peeling and corn grits making


Product Detail

Production Case

 Corn peeling, grits and flour machine set usage:

1. Used in corn peeling, corn grits and flour milling, wheat peeling and flour milling, paddy peeling and sorghum peeling and flour milling.
2. Suitable for small size of food processing factories in corn, wheat and sorghum peeling, grits and flour making.

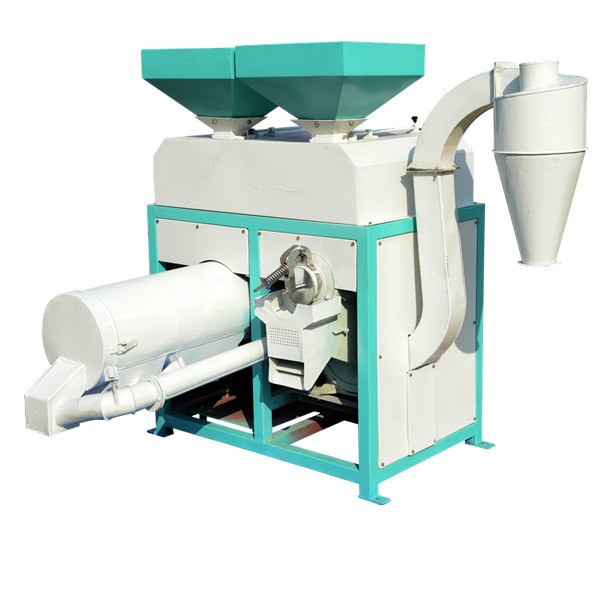

Corn Peeling, Grits and Flour Machine Set


Working principle and features of corn peeling, grits and flour machine:

YTZSF28-30 corn peeling, grits and mill grinder set mainly has two functions: corn peeling and corn grits making. The machine is installed a motor with 11KW, 380V, and can process 500kg of corn, wheat, sorghum and paddy per hour.
This machine set is a combination equipment which consists of corn peeling, corn polishing, corn grits and flour making, end products classifying and winnowing. The clean raw grain is conveyed to the feeding inlet for peeling, degermination and black impurities removing and can be processed into corn kernels once. After smashing and mixture grading, the machine can produce three end products: medium grits, small grits and corn flour. Inside of the machine has highly efficient air draft chamber for collecting the corn skin from peeling process and further cleaning micro powder and micro impurities in the corn grits.

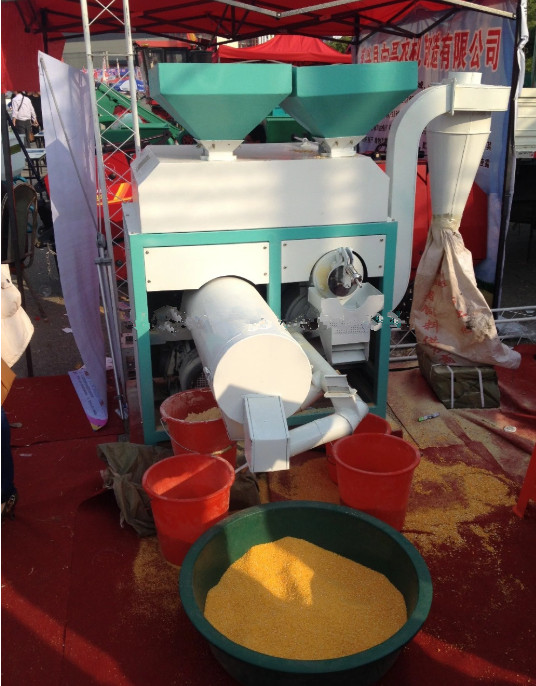

Corn Peeling, Grits and Flour Machine Set


All dry processing technology:

This machine set adopts dry peeling technology. The products don’t touch water. Compared with wet peeling technology, this processing method is more sanitary.

 Corn peeling, grits and flour machine functions and features:

1. Internally installed efficient winnowing and dust removal fan can remove and collect corn skin and the impurities and dust from grits processing, and then eliminate and collect these skins and impurities by cyclone.
2. High yield, good effect
3. The discharging outlet of the peeling chamber can accurately control corn or wheat staying time in the peeling chamber by pressure valve. Ensure the effective friction with alloy roller so as to realize better peeling effect.

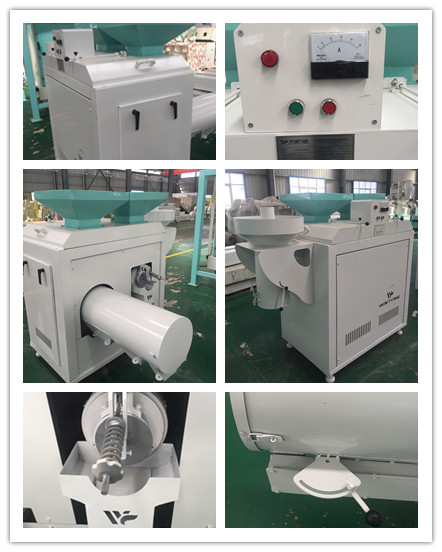

Corn Peeling, Grits and Flour Machine Set


4. Low energy consumption, wide usage
5. Assembled with peeling and grits and flour milling functions, the machine unit adopts 11KW motor as the power equipment to reduce input cost. It can be applied in corn, wheat and sorghum peeling, kernel and flour making.

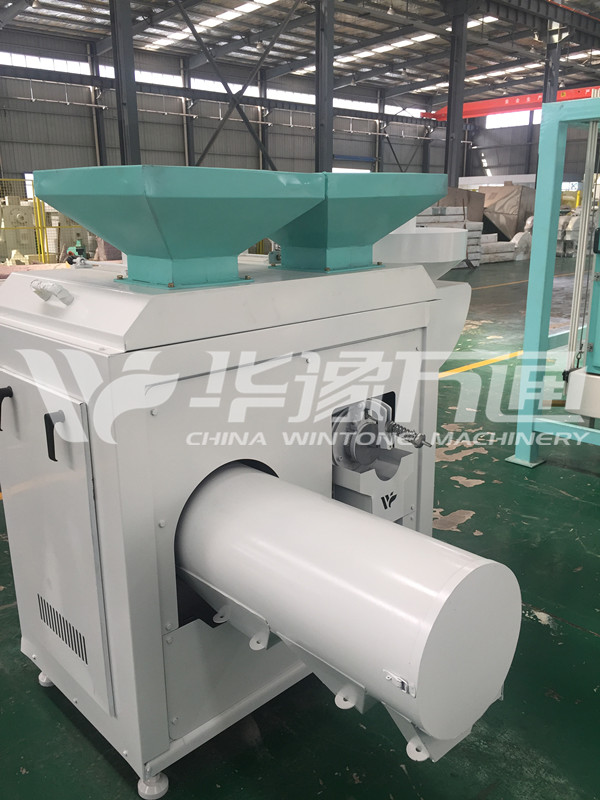

Corn Peeling, Grits and Flour Machine Set

Tips of the machine set operation:

Put a piece of magnet at the feeding inlet and form a simple magnetic separation system at the feeding inlet so as to adsorb the irony in the grains.
Realize simple cleaning to the grain surface by utilizing internally installed blower.



Corn Peeling, Grits and Flour Machine Set finished product

Warranty period:

Contract repairing, guarantee of replacement and returns within half a year from the date of the goods arrival.

Model
Yield(KG/H)
Power
Voltage
Weight(KG)
Size(MM)
(KW)
(V)
YTZSF28-30
500kg
11KW
380
430
1580×1460×1560

Packaging Details

Small Scale corn peeling/ grits/flour milling machine package:

1. Packing requirement: standard containers

2. Inner packing: product wrapped by plastic and put in wooded

3. Size: 1900*1500*1460mm

4. Weight: 430kg

5. Color: Green. white

6. Model: YTZSF28-30

7. Packaging Details: The normal package is wooden box(Size: L*W*H).
